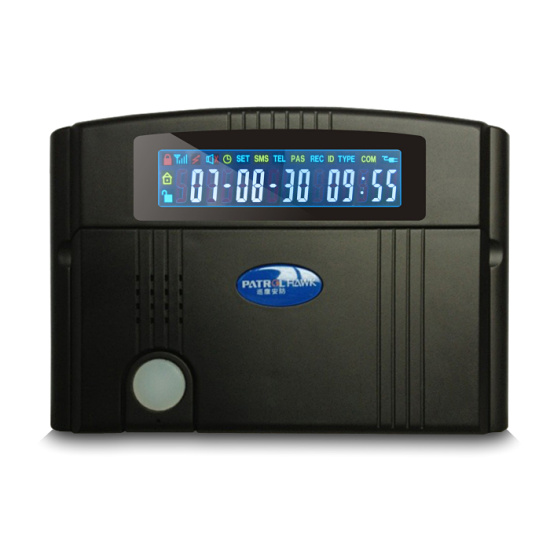

Patrol Hawk GSM alarm system G50B
24 Wreless zones and 2 wired alarm zones
Support countless wireless sensors
Store 3 alarm phone numbers and 3 SMS numbers
30s delay arn
2 way-communication
Main functions
• LCD display and keypad for easy program
• 24 Wreless zones and 2 wired alarm zones
• Support countless wireless sensors
• Store 3 alarm phone numbers and 3 SMS numbers
• 30s delay arn
• 2 way-communication
• Remote monitoring by SMS
• Built-in rechargeable lithium battery backup
• Tamper alarm
• Power-off alerm
• Slef-check door lock or not
• With Patrol Hawk contact-ID, compatible with CMS.
• Support quad-band
Different packing for optional:
| Standard packing PH-G50 • Panel(with battery backup ) x 1 | .jpg) |
| Standard packing with built-in antenna sensors PH-G50 PH-G50-NB | .jpg) |
Parameter
GSM frequency: 900/1800MHz /850/1900MHz
Alarm method: adopts SMS data transmission and voice platform
Stand-by power consumption ≤0.6W
External power failure alarm
Alarm response time
Less than 8s (GSM in normality)
The volume of siren
More than 110db
Standby battery：DC 8.4V (lithium battery)
Standby battery working hours: more than 15 Hours
Working conditions
Operating temperature: -20℃ ~ +55℃
Humidity: ≤ 95% (no condensation)
Dimension of alarm host
Dimension: 170mm (Long) ×118mm (Wide) ×40mm (High)
| * First Name: | Please fill in your First Name |
| * Last Name: | Please fill in your Last Name |
| Company name: | Please fill in your company name |
| Telephone number: | |
| * E-mail: | |
| Country: | |
| Address: | |
| * Inquire intention description: | |
| Please fill in the quantity and description of Inquire products for uniform stocking. | |
- Wireless Door Sensor PH-MC-D
- The PH-MC-D is designed to prevent the intruders come in from the doors or windows. It will send alarm signal to the alarm host immediately once the door or window was opened illegal.
Built-in Antenna
With DIP switch, easy to setup and program to the alarm host
Low battery LED indication
Distance: indoor≥30m, outdoor≥100m (with no obstacle)
Battery model: 12V 23A. capacity 50MA, with 6 month lifetime (trigger 10 times each day)
- Built-in Antenna Wireless PIR Motion Detector
- The PH-WTXWHW will detect movement of human automatically when intruder pass through the detected area.
Operating voltage: DC9V (“6F22”battery)
Static current: ≤25uA
Alarm current: ≤15mA
Detecting distance: 9-12m
Detecting angle: 110
Code form: 2262
Transmission frequency: 315MHz or 433MHz
- Wireless Control Keypad
- The PH-101 is specially designed for arm/disarm the alarm host with password authentication, which can be installed at the gates.
Wireless transmitting: 433MHZ/315MHZ for optional,
Transmitting distance: over 200 meters (in the open area)
With 2262 fixed encode IC, compatible with all the alarm hosts with fixed code.
Size: 117mm x 117mm x 21mm
- 4-key Black Remote Controller
- The PH-BYKQ4 is designed to arm or disarm the alarm host remotely, with panic button for emergency alarm.
Battery model: 12V 27A
Transmitting current: ≤15mA
Transmitting frequency: 315MHZ/433mhz for optional
Transmitting time: ≤1s
Transmitting distance: barrier free distance ≥80M
Working temperature:-10 to +40℃
Relative humidity: ≤90
