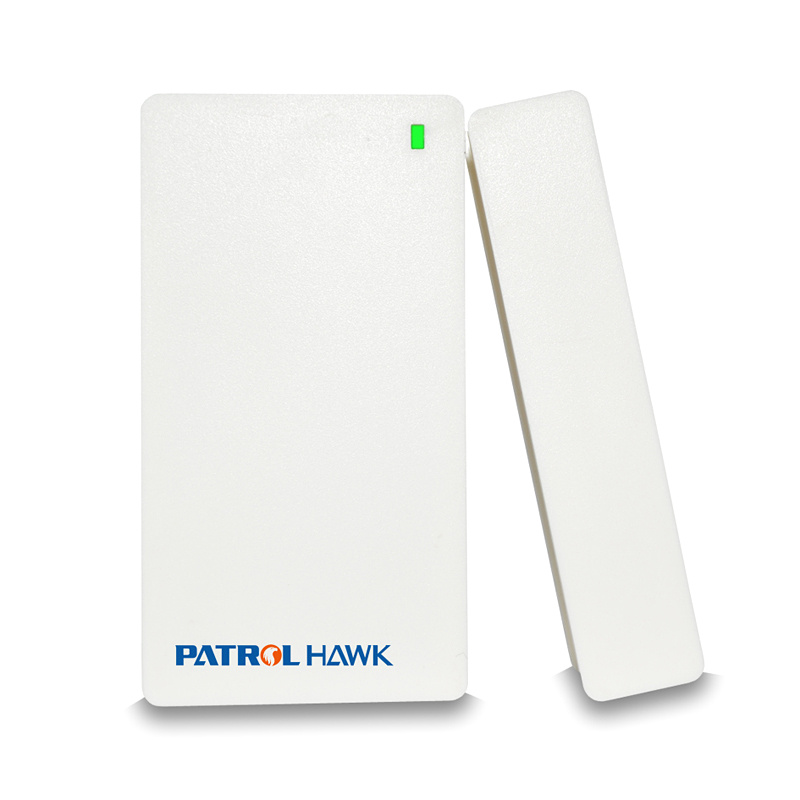

Wireless Door Sensor PH-WWMC
Product category: Intercom
The PH-MC-D is designed to prevent the intruders come in from the doors or windows. It will send alarm signal to the alarm host immediately once the door or window was opened illegal.
Built-in Antenna
With DIP switch, easy to setup and program to the alarm host
Low battery LED indication
Distance: indoor≥30m, outdoor≥100m (with no obstacle)
Battery model: 12V 23A. capacity 50MA, with 6 month lifetime (trigger 10 times each day)
Built-in Antenna
With DIP switch, easy to setup and program to the alarm host
Low battery LED indication
Distance: indoor≥30m, outdoor≥100m (with no obstacle)
Battery model: 12V 23A. capacity 50MA, with 6 month lifetime (trigger 10 times each day)
Hotline: 086-0755-26498270
Fax: 086-0755-83976450
Email:patrolhawk@phalarm.com
The PH-MC-D is designed to prevent the intruders come in from the doors or windows. It will send alarm signal to the alarm host immediately once the door or window was opened illegal.
Main function
Built-in Antenna
With DIP switch, easy to setup and program to the alarm host
Low battery LED indication
Technical Parameter
With 2262 encode IC, 433MHZ, 4.7ohm
Distance: indoor≥30m, outdoor≥100m (with no obstacle)
Battery model: 12V 23A. capacity 50MA, with 6 month lifetime (trigger 10 times each day)
Working current: standby≤16uA, triggered≤19uA
Working temperature: -10℃~+60℃
Size: emitter 66MM×35MM×14MM, magnetic stripe 66MM×14MM×14MM
Color: creamy-white
Door sensor X1
12V 23A battery X1
hot key:Alarm system,home alarm system,wireless alarm system,Alarm Security,Alarm Wireless
* Indicated required fieldInquire:
Wireless Door Sensor PH-WWMC
| * First Name: | Please fill in your First Name |
| * Last Name: | Please fill in your Last Name |
| Company name: | Please fill in your company name |
| Telephone number: | |
| * E-mail: | |
| Country: | |
| Address: | |
| * Inquire intention description: | |
| Please fill in the quantity and description of Inquire products for uniform stocking. | |
- 868/433MHz Wireless Control Keypad PH-101
- The PH-101 is specially designed for arm/disarm the alarm host with password authentication, which can be installed at the gates.
Wireless transmitting: 433MHZ/315MHZ for optional,
Transmitting distance: over 200 meters (in the open area)
With 2262 fixed encode IC, compatible with all the alarm hosts with fixed code.
Size: 117mm x 117mm x 21mm
- 4-key Black Remote Controller PH-YKQ4
- The PH-BYKQ4 is designed to arm or disarm the alarm host remotely, with panic button for emergency alarm.
Battery model: 12V 27A
Transmitting current: ≤15mA
Transmitting frequency: 315MHZ/433mhz for optional
Transmitting time: ≤1s
Transmitting distance: barrier free distance ≥80M
Working temperature:-10 to +40℃
Relative humidity: ≤90
- Wireless Strobe Siren PH-SJH
- The PH-SJH is designed to inform the user when the alarm host is alarming, and meanwhile to scare the intruder.
Working voltage: DC12V
Rechargeable standby battery: 7.4V 200mA
Quiescent current: ≤10mA
Siren volume: ＞100dB
Working temperature: -10℃~ +70℃
Transmitting distance: Barrier free distance≥80m
