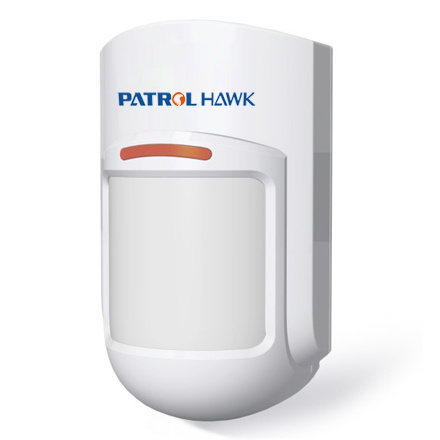

Built-in Antenna Wireless PIR Motion Detector
Product category: Wireless Detector
The PH-WTXWHW will detect movement of human automatically when intruder pass through the detected area.
Operating voltage: DC9V (“6F22”battery)
Static current: ≤25uA
Alarm current: ≤15mA
Operating voltage: DC9V (“6F22”battery)
Static current: ≤25uA
Alarm current: ≤15mA
Hotline: +86-755-26498270
Fax: +86-755-83976450
Email:Leovine@phalarm.com
The PH-WTXWHW will detect movement of human automatically when intruder pass through the detected area, and it will send alarm signal to alarm host if there is movement.
Technical Parameter
Built-in Antenna
Operating voltage: DC9V (“6F22”battery)
Static current: ≤25uA
Alarm current: ≤15mA
Detecting distance: 9-12m
Detecting angle: 110
Code form: 2262
Transmission frequency: 315MHz or 433MHz
Transmission distance: 100m (open area)
Low battery indicator: yellow LED
Alarm indicator: red LED
Operating temperature: -10 ℃+50℃
Environment humidity: ≤95% RH (no congelation)
Installation mode: wall mounted or hanged in corner
Installation height: 1.7 to 2.5m (2.2m is Proposed)
Dimension: 106*62*46mm
PIR x 1
Bracket x 1
DC9V battery x 1
