Wireless Touch Keypad

Product category: Accessories
Arming/Disarming/Home Stay Arming for the Vcare hub; Disarming with a RFID tag or by password; Comes with AAA batteries, very easy to change battery;
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

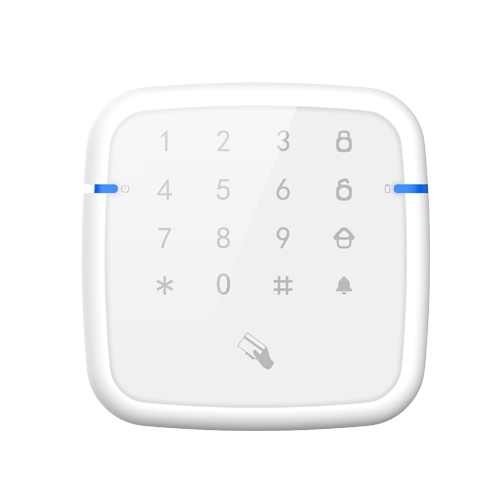

V3-pad is a wireless touch keypad, which works with our hub/gateway VCare 3 for arming, disarming, home stay arming. With 6 digits password protection, and RFID to arm the system, which makes the system more simple and secure.

Main Features

  • The host can be armed, disarmed, armed in the home mode, and password changed through the keyboard.
  • The host can be quickly disarmed by RFID tag.
  • With password protection, it is forbidden to maliciously disarm the host.
  • With two AA batteries, it is easy to buy and replace when low battery.
  • Long standby time, low battery prompts to replace the battery
  • With tamper alarm function to prevent the keyboard from being removed



Specification



Power Requirements (V)

Battery supply

Use

Arming/disarming/home stay arming

Low Voltage

2.4V

Materials

ABS



Buttons

15



Emission current(mA)

50 mA



Buzzer reminder

Buzzer tone



Transmission Frequency

433/868/LoRa 433Mhz

FM mode

GFSK



Unobstructed Effective Range (m)

30-100m | 1000M for LoRa 433 MHz

Operating Temperature (°C)

-10°C~+50°C



Operating Humidity (RH)

95%



Emission power

10db



Dimension

120mm*120mm*25mm







hot key:touch keypad, remote keypad, RFID keypad
