Wireless Smoke Sensor PH-WYG

Product category: Accessories
Sound & flash alarm/LED indicating alarm Dust-proof, Moth-proof, anti white light interferenc.
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

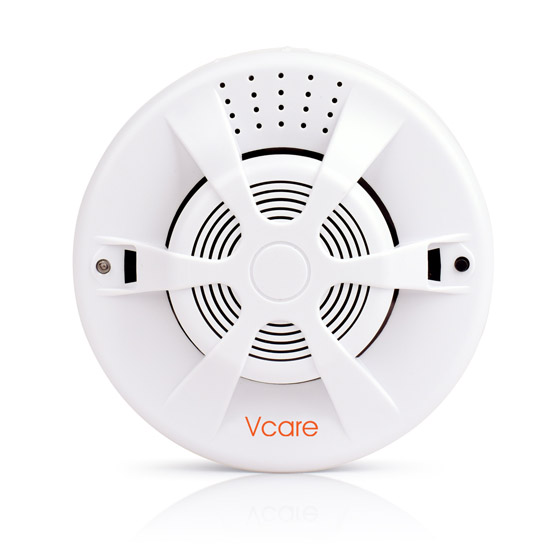

PH-WYG is a wireless photoelectronic smoke detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it's provided with dust-proof, mothproof an anti-light interference etc. functions, ensuring the detector stability from design basis. Meanwhile, the detector could be programed to an alarm system via wireless netowrking, suitable for allkinds of installation environments and enhancing users' perception of alarm signal. It reacts very quick to visible smoke reeased by smoldering fire and flaing fire, and suitble for fire alarm in houses, factories, shopoing malls, hotels, restaurants, office buildings teaching buildings, banks, libraries, warehouses etc.


  • Adopts MCU Auto-Process technology.
  • Wireless networking to alarm system.
  • Hush Button
  • Malfunction auto-check.
  • Auto-reset after triggering.
  • Infrared photoelectronic sensor.
  • Sound & flash alarm/LED indicating alarm.
  • Anti-FR interference (20V/m-1GHz)


Operating voltage:

  • 9V battery (6F22 carbon battery, DC type)
  • AC 220V/110V with 9V backup battery ()AC type
  • Static current: ≤20uA
  • Alarm current: ≤40mA
  • Battery life: carton battery for about 1 year
  • Alarm indication: LED flashes in red.
  • alarm sound: ≥ 85db/3m
  • Code form: 2262
  • Radio frequency: 315MHz/433MHz
  • Radio transmtting distance: 200m (open area)
  • Operating temperature: -10 ℃ - 50 ℃
  • Humidity: ≤ 95%RH
  • Dimension: 128*38mm
  • Detecting area: 80㎡ at 6-12m installation height, 60㎡ at installation height < 6M
