Wireless Curtain PIR Motion Sensor PH-WML

Product category: Accessories
Operating Voltage: DC9-24V Static Current: ≤25uA Alarm Current: ≤10mA Radio Frequency: 433MHz or 315MHz Radio Distance: 200m in open area Detecting Angle: 15 degree
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

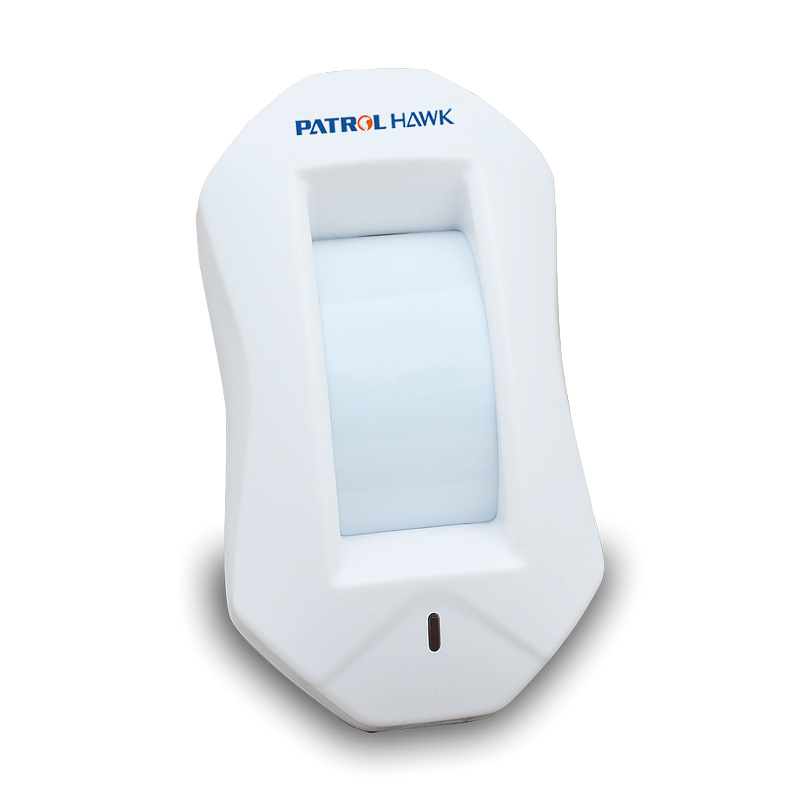

Wireless Curtain PIR Motion Sensor PH-WML


Wireless Curtain PIR Motion Sensor

Operating Voltage: DC9-24V

Static Current: ≤25uA

Alarm Current: ≤10mA

Radio Frequency: 433MHz or 315MHz

Radio Distance: 200m in open area

Detecting Angle: 15 degree

Working Environment: -10°C~+50°C( ≤95%RH(no congelation)

Dimension: 110*69.5*40mm

Installation: wall mounted

hot key:Wireless Curtain PIR Motion Sensor
