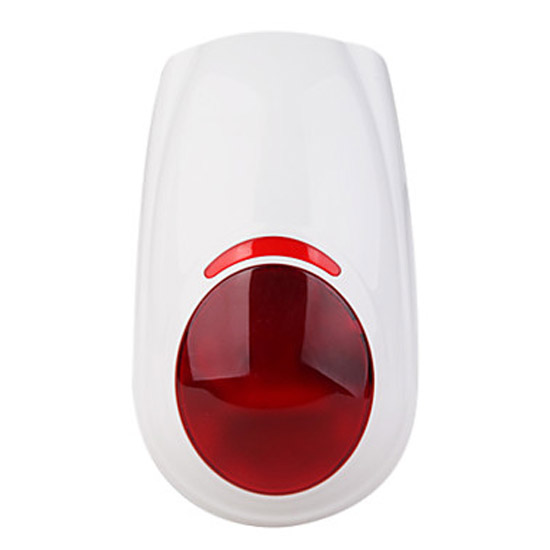

Outdoor Wireless Strobe Siren PH-HDSDJH2

Product category: Accessories
Wireless Strobe Siren PH-HDSDJH Power supply: DC12V Voltage: >110DB Transmitting distance: >80M
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

Wireless Strobe Siren PH-HDSDJH

PH-HDSDJH wireless outdoor strobe siren is an effective crime deterrent and its easy to work with Vcare and G2 Alarm System.



Technical parameters

Rated voltage: DC12V

Operating range: DC6-15V

Current work: 200MA (DC = 12V)

Standby current: 6MA

Operating temperature range: -20 ℃ +60 ℃

Sound pressure range: 110 ± 3DB (test 1-meter platform, the outside-to-noise ratio ≦ 65DB)

SIREN + / SIREN-trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (with the duration of the signal to trigger the same)

LED + / LED-trigger: a red LED flash every 3 seconds on average 1 (duration of the trigger signal with the same)

Tamper switch to trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (3-minutes)

External power supply to be cut: flashing lights flash every 2 seconds, red LED light, siren alarm (last3-minutes)

Battery back-up: 6V/600MA fitted with battery back-up, the green LED lights on

Wireless models:

Radio frequency: 433MHZ/315MHZ

Wireless distance: 1) open distance ≧ 100 m

2)Indoor distance ≧ 30-50 meters

Testing continued: ≧ 30 minutes

Indirect tests: 8 hours

Size: 197 * 111.5 * 78MM

hot key:Outdoor Wireless Strobe Siren
* Indicated required fieldInquire: Outdoor Wireless Strobe Siren PH-HDSDJH2
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Wireless Outdoor Strobe Siren
Wireless Outdoor Strobe Siren
*Size: 260*170*65mm
*Net weight: 0.9 kg (without battery)
*Alarming time: 1min, 3 mins, 6 mins
*Current consumption: 20mAh at 12 VDC
*Flash tube current: 180mA at 12 VDC
Wired strobe Siren for indoor PH-SGJH
Wired strobe Siren for indoor PH-SGJH
Using alarm host supply electricity
Power Requirements :12VDC
Current Consumption:20mA (High-low sound)
Transmit Way:through line
