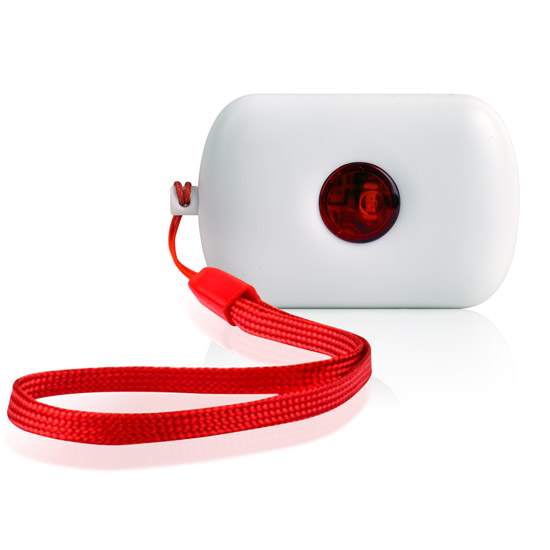

One-key Panic Button PH-PNC

Product category: Accessories
Double alarm types: one-key press alarm and pull alarm Zero standby power consumption Low-battery detection
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

Panc Button,model PH-PNC. It has emergency alarm functions. Once the emergency incident occurs, the detector will be triggered to transmit the signal to the host by wireless way so as to achieve the effect of emergency call. This product is suitable for all the places where the security protection is needed. such as residential areas, companies, shipping malls, hospitals, banks, guard post etc.

Main Feature:

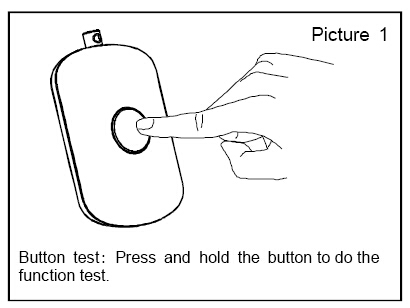

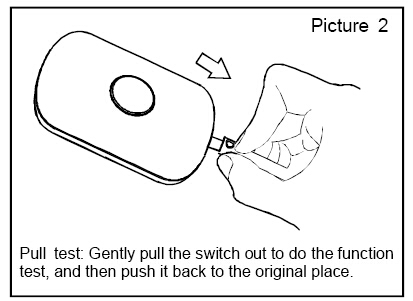

  • Double alarm types, button types and pull type.
  • Compact appearance, can hand it up.
  • Zero Standby power consumption
  • Low-battery detection
  • MCU coding, cmpatible with 2262/1527
  • Anti RFI (20V/m-1GHz)
  • SMT Process



Technical Specification

  • Operation voltage: 3V (1*CR2032 button cell)
  • Standby current: 0uA
  • Alarm Current: ≤25mA
  • Alarm indicator: red LED
  • Low-battery indicator: rapid flash of red LED
  • Transmitting frequency: 315MHZ or 433Mhz
  • Transmitting distance: 50M to 100M
  • Temp.: -10 ℃-+50℃
  • Humidity: ≤80% RH (no congelation)
  • Dimension: 36*58*15mm



hot key:Alarm system,home alarm system,wireless alarm system,Alarm Security,Alarm Wireless
