Burglar Alarm System G1D
Brief introduction
This GSM alarm system PH-G1 adopts GSM network and Digital Signal Processing technology, and is widely used in security field. With a GSM SIM card, it can be used wherever you want and no need to connect to a telephone line, it is more convenient and easier to install and use.
________________________________________________
Main functions
1. iOS APP & Android APP operation
2. English, Spanish, Chinese, Russian, French, Russian for optional
3. Each zone with independent arm functions
4. With 2 wired zones and 12 wireless zones
5. With voice reminder when users operate the system
6. Works with external Microphone & speaker
7. Each wireless zone can work with unlimited wireless sensors
8. 10 seconds D.I.Y voice record
9. 3 text message alarm number & 3 calls alarm number
10. Name what you mind for each zone
11. Inquiry the system status wherever by SMS
12. With password protection
13. Wireless Emergency function (24 hours zone)
14. With Backup rechargeable battery, system is able to keep working for 10 hours even if there is a power is failure.
15. When GSM signal is weak or there is no signal, it will send SMS or sound the siren to inform users.
______________________________________________
Specification
1. GSM network frequency Standard: 850/900/1800/1900MHz
2. External power failure alarm: Start-time: Less than 1s
3. Alarm response time: Less than 10s (GSM with normal signal)
4. Power requirements: AC110V~220V 50Hz or 60Hz
5. Standby lithium battery: DC8.4V, 700-800mA
6. Working conditions: Operating temperature: -20 to 60
Humidity: ≤95%
7. Wireless frequency: 433MHz/315MHz
________________________________________________

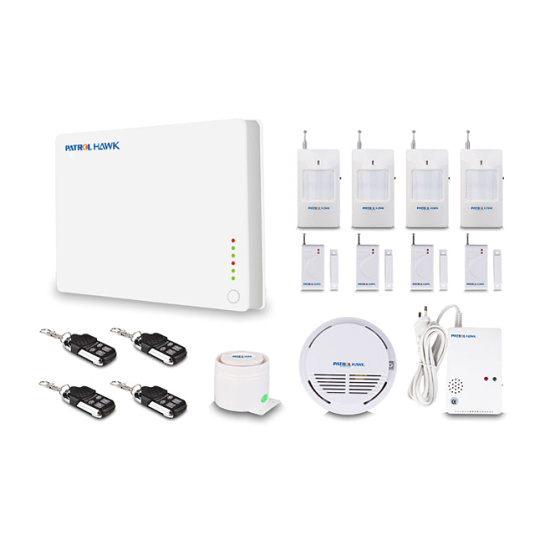

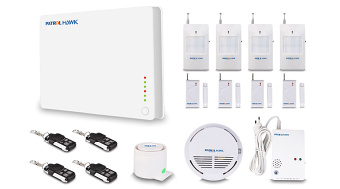

Packing List
| GSM Alarm Panel | 1 pcs |  |
| Wireless PIR Sensor | 4 pcs | |
| Wireless Door Sensor | 4 pcs | |
| Remote Controller | 4 pcs | |
| Wired Siren | 1 pcs | |
| Power Adapter | 1 pcs | |
| Wireless Smoke Sensor | 1 pcs | |
| Wireless Gas Sensor | 1 pcs | |
| User Manual | 1 pcs |
| * First Name: | Please fill in your First Name |
| * Last Name: | Please fill in your Last Name |
| Company name: | Please fill in your company name |
| Telephone number: | |
| * E-mail: | |
| Country: | |
| Address: | |
| * Inquire intention description: | |
| Please fill in the quantity and description of Inquire products for uniform stocking. | |
- Indoor Wireless PIR Motion Detector
- ? The wireless PIR motion detector uses the principle of passive infrared heat release to detect human movement within a certain space. Once the detector detects human movement, it will transmit a wireless signal to the alarm gateway. If the gateway is in armed mode, it will trigger an illegal intrusion alarm to the central monitoring station and related contacts.
- Wireless Door/Window Magnetic Detector
- ? The wireless door/window magnetic detector consists of two parts: a wireless transmitter and a permanent magnet. It is used to detect whether doors, windows, drawers, etc. are illegally opened or moved. Once the detector detects its status change to open, it will transmit a wireless signal to the alarm gateway. If the gateway is in armed mode, it will trigger an illegal intrusion alarm to the central monitoring station and related contacts.
- Wireless SmokeDetector
- The wireless smoke detector is suitable for situations where visible smoke is produced before the fire spreads.When a fire occurs, the burning of combustible materials will produce smoke. Once the detector detects that the smoke concentration exceeds the calibrated value,it transmits a wireless signal to the alarm gateway. The gateway will trigger an fire alarm to the central monitoring station and related contacts.
